Classic Analog 8-Voice Polyphonic Synthesizer with 2 VCOs, Classic VCF, Arpeggiator, Sequencer and 400 Program Memories in Eurorack Format
Product Features
-
Classic Polyphonic 8-voice synthesizer and authentic reproduction of the Prophet 600
-
Pure analog signal path based on authentic VCO, VCF and VCA designs
-
2 VCOs per voice for fat and detuned sounds
-
Unison mode for fat 16 oscillator lead and bass sounds
-
Up to 6 simultaneous oscillator shapes (OSC A: saw, triangle and pulse; OSC B: saw, triangle and pulse waveforms)
-
Square waves with pulse width control and PWM via global LFO
-
Classic 4-pole filter design with self-resonance capability
-
Unique “POLY MOD” function allows OSC B and the filter envelope to modulate OSC A frequency plus filter cutoff
-
Dedicated LFO with 6 waveform shapes to modulate the pulse width and pitch of oscillators A and B plus filter cutoff frequency
-
2 ADSR envelope generators for modulation of VCF and VCA
-
Arpeggiator with up/down and key-assign modes
-
Polyphonic 2-track sequencer for creative sequences
-
400 user program memories for storing all your favorite patches
-
Additional noise generator found in the ultra-rare Japanese Version called MMI 6E3.1
-
Polyphonic glide for everything from subtle portamento to extreme effects
-
Chord memory for transposing a chord across the keyboard
-
Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)
PRO-800

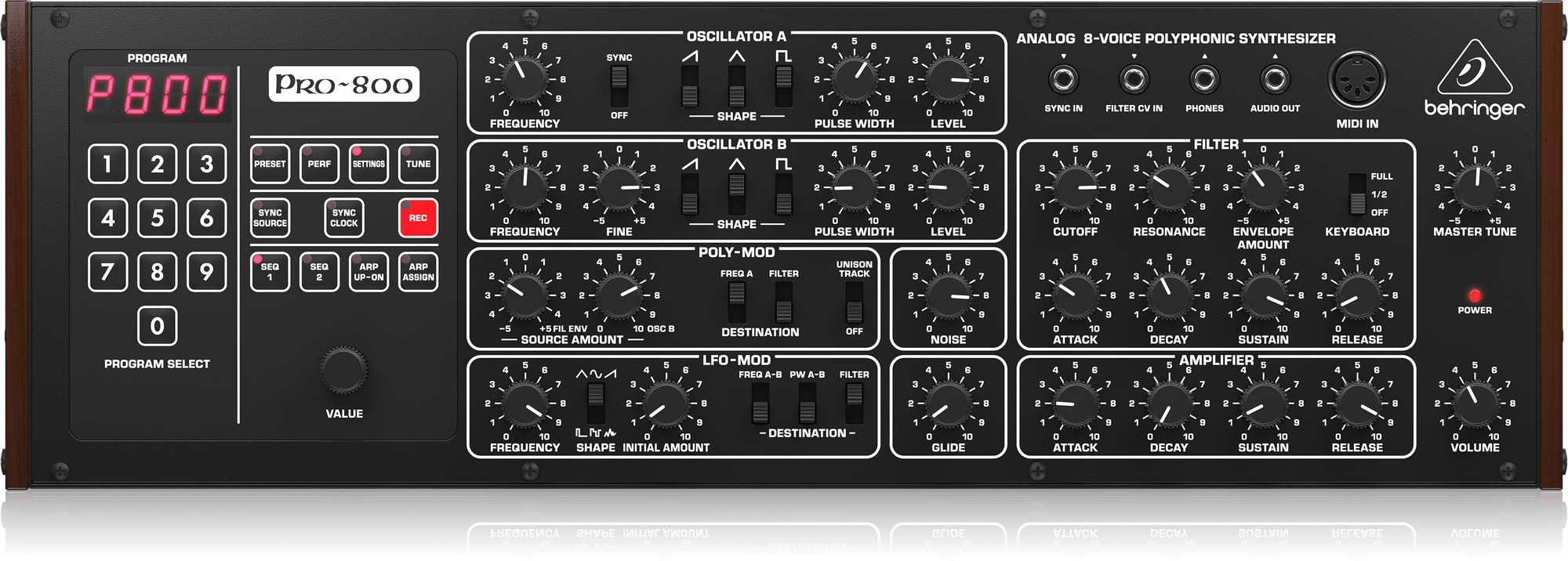

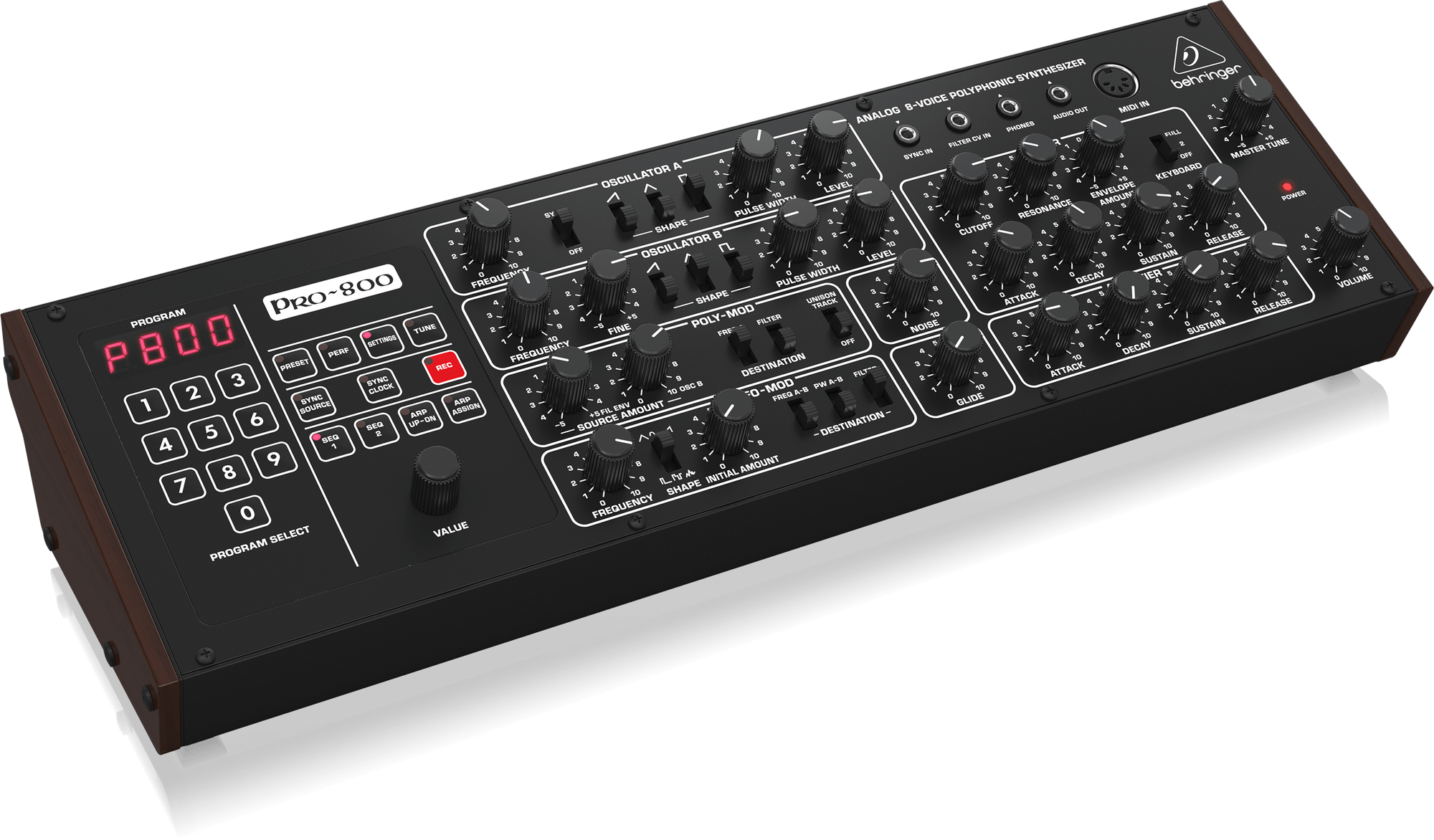

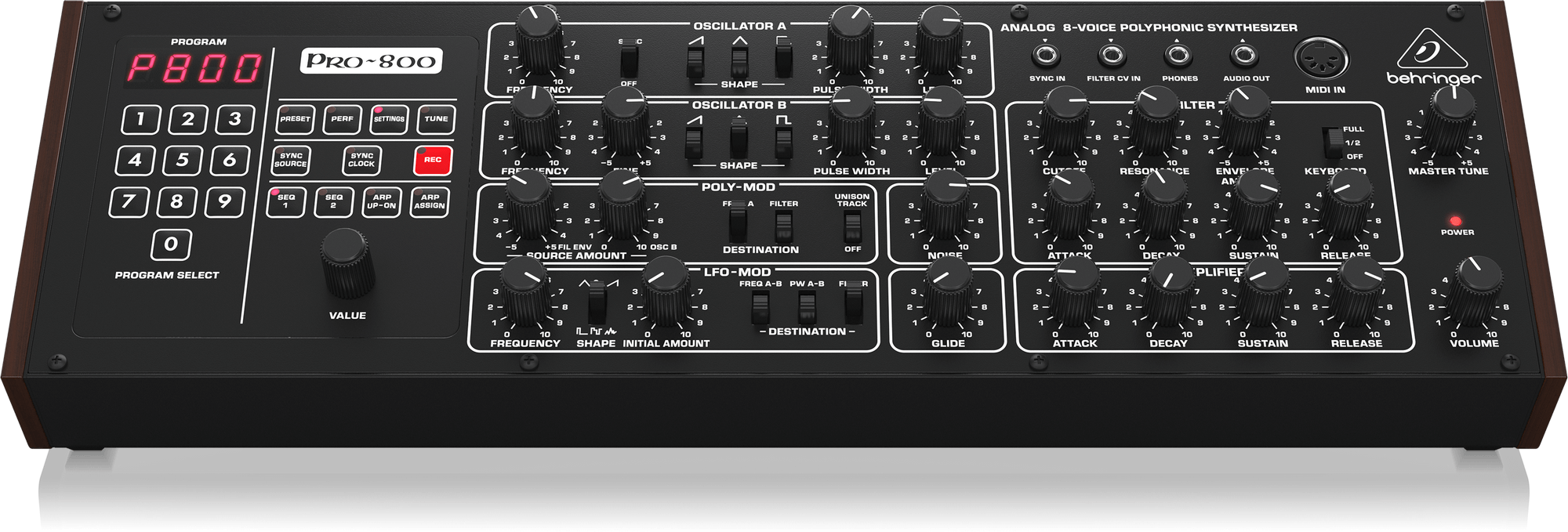

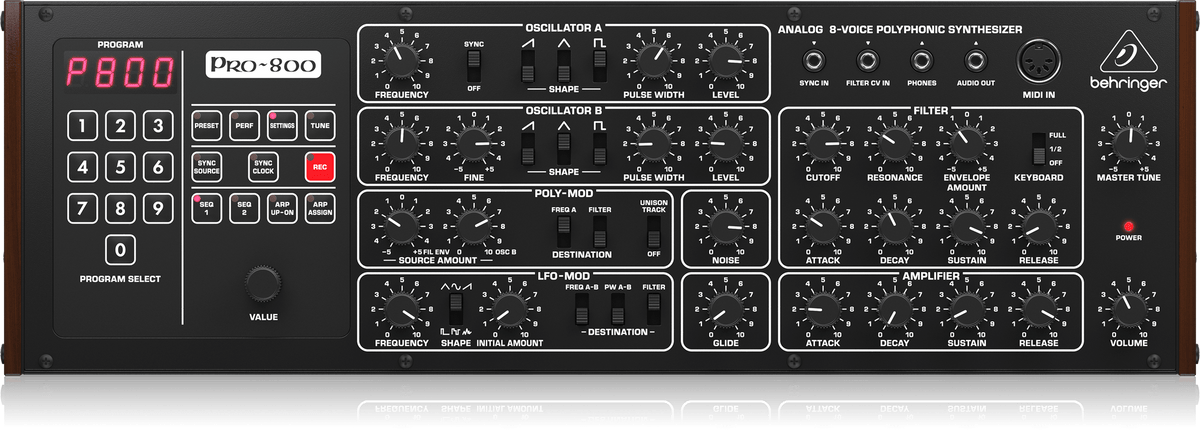

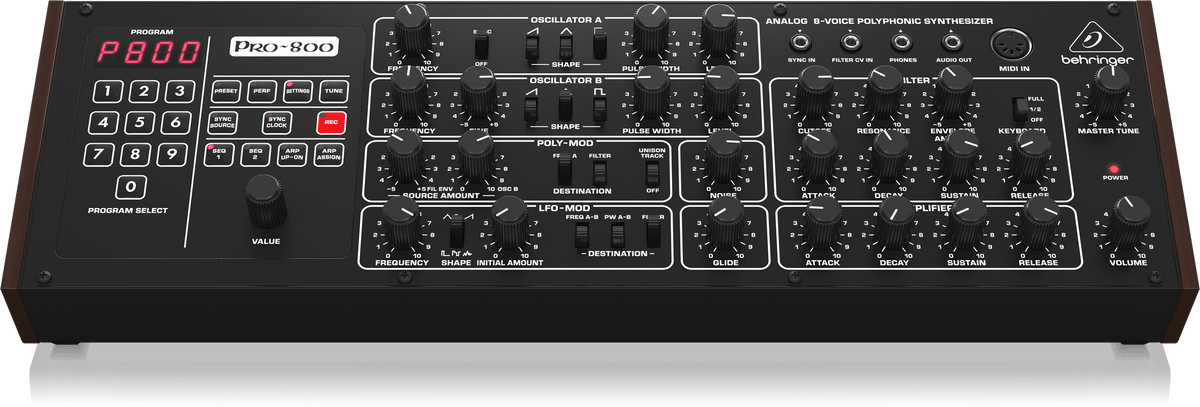

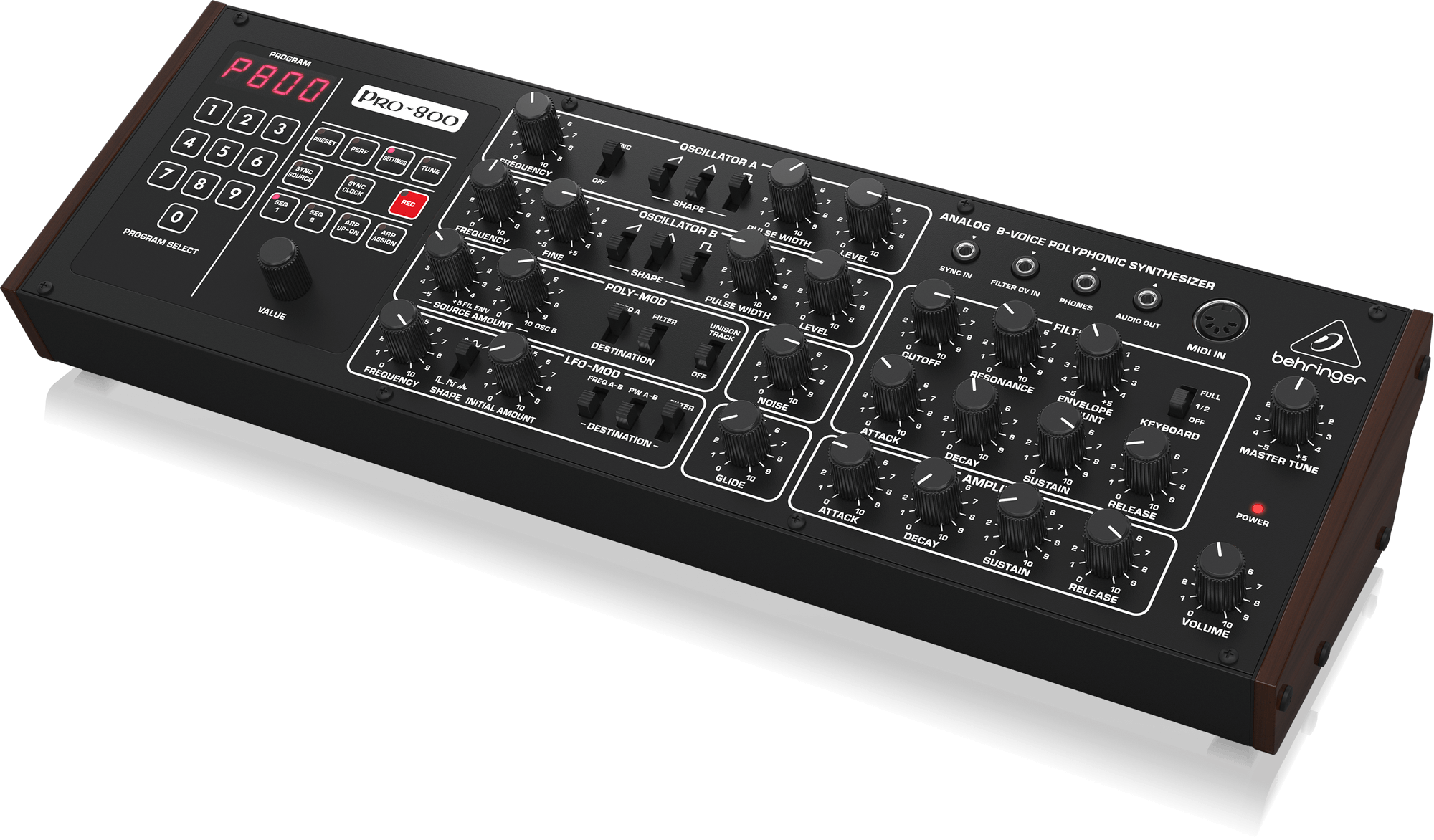

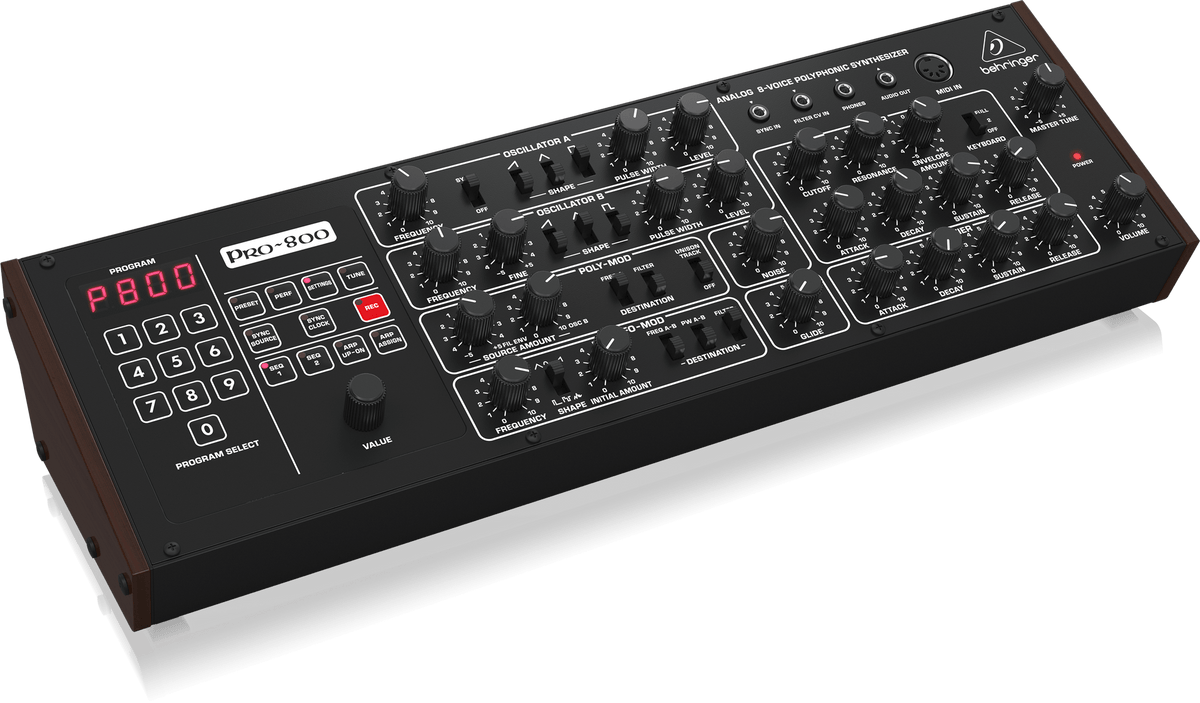

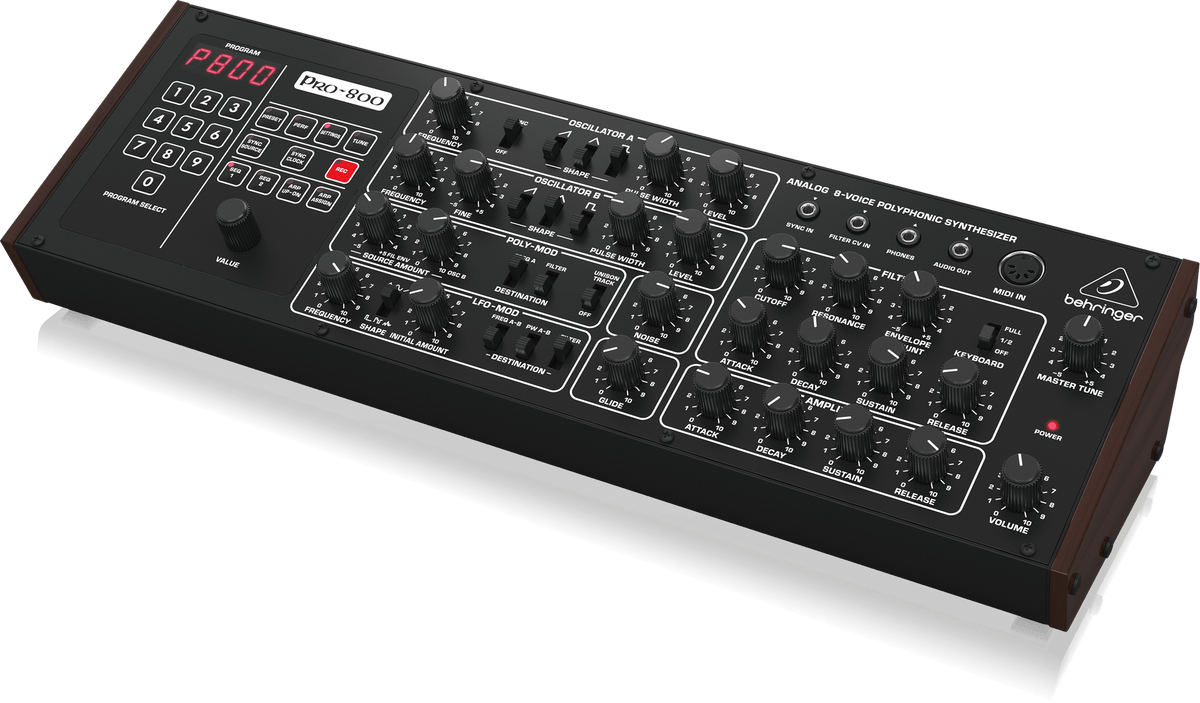

The Behringer PRO-800 is a classic analog 8-voice polyphonic synthesizer with 2 VCOs, 1 VCF, an arpeggiator and sequencer. Based on the classic Prophet 600, this synth captures the vintage sounds of the original coupled with some modern features like MIDI and onboard memory for storing up to 400 patches to truly make the PRO-800 a great choice for the modern musician.
Classic Design with Modern Additions
In keeping with the classic feel, the PRO-800 sports a pure analog signal based on authentic VCO, VCF and VCA designs that have made original synths like the Prophet 600 so sought after by many electronic musicians and enthusiasts. Each of the 8 voices also contains 2 VCOs for some massive, detuned sounds.
Unlimited Creativity
Unison mode on the PRO-800 also allows you to create some nice fat 16 oscillator lead and bass sounds. Combine that with the ability to use up to 6 separately tweakable oscillator shapes (OSC A and B: saw, triangle and pulse) simultaneously and you can create some ultra-sizzly solos or ginormous bass tones. The “POLY MOD” function even allows OSC B to modulate OSC A.
A Good Memory
Have a bevy of ideas but just can’t remember them all especially with the pressure of a live performance? We’ve got the solution for you! Up to 400 patches can be stored on the PRO-800! Simply enter the program number with the keypad and your patch will be ready for action.
Eurorack Ready
The PRO-800 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the PRO-800 to be mixed with other synth modules for a truly unique set up.
Specification
Synthesizer Architecture
| Number of voices |
8 |
| Type of oscillators |
2 x 3340 per voice |
| Type |
Analog |
| Oscillators |
16 (32.70 Hz to 8372.02 Hz across 4 ranges) |
| LFO |
1 (0.08 Hz to 20 Hz) |
| VCF |
1 x 4-pole low pass (24 dB/oct. slope) |
| Envelopes |
VCF, VCA |

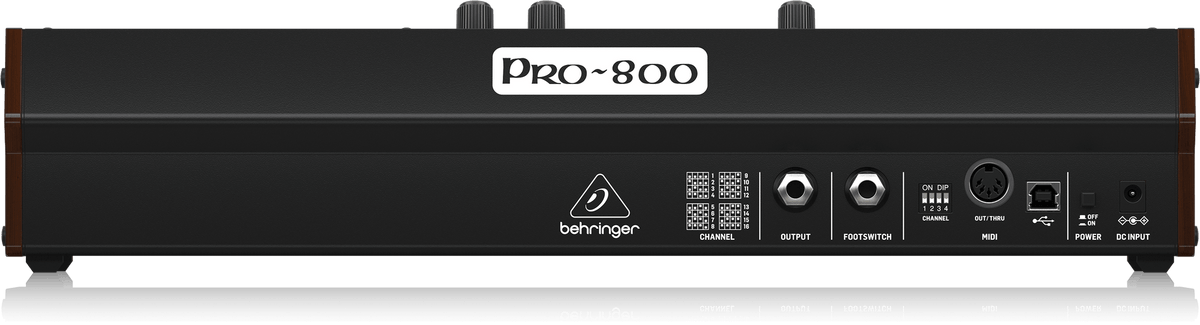

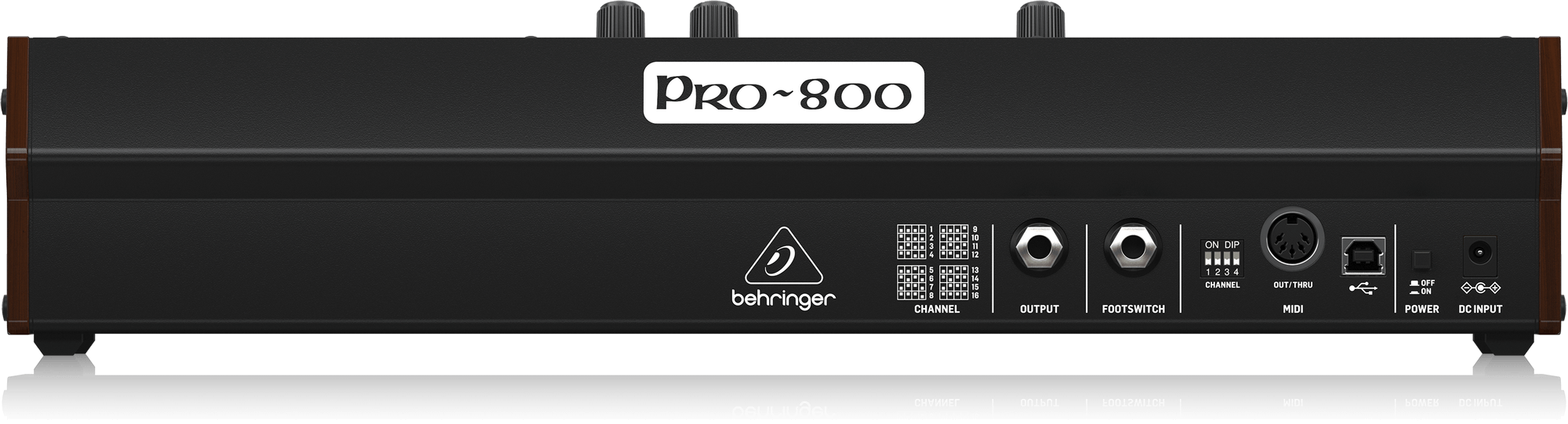

Connectivity
| Output |
¼" TS, unbalanced, max. +5.0 dBu |
| Audio out |
1/8" TS, unbalanced, max. +20.0 dBu |
| Footswitch |
¼" TS, unbalanced |
| Headphones |
1/8" TRS, unbalanced, max. 7.5 mW @ 32 Ohm |
| Headphones output impedance |
8 Ω |
| MIDI In Out/Thru |
2 x 5-pin DIN/ 16 channels |
| USB (MIDI) |
USB 2.0, type B |
| Sync in |
TS 3.5 mm 1PPS, 2PPQ, 24PPQ, 48PPQ |
| Fliter CV IN |
TS 3.5 mm 0 V to +10 V |
